The UltraLink 2 KVM over IP solution is an easy and secure way to remotely manage server room environments, remote standalone applications such as digital signage and other remote applications. You can access your computers and servers locally, across your network, or over IP using a web browser. Connect the unit to a Rose Electronics KVM switch and you now have access to as many as 1,000 computers or servers from anywhere in the world. The UltraLink 2 is easy to install and configure. Assign an IP address and network information, connect the unit to your equipment and network and it’s ready to access using any supported web browser or access the unit directly using the very secure RealVNC viewer. Instead of going to a remote site to perform an upgrade or patch, let the remote site come to you. The Virtual Media feature allows the IT professional to remotely access USB equipped systems and perform patches and upgrades without the expense of a trip to the remote site. On the dual access model, a local KVM station can be connected for direct access to the connected computer.
Front panel indicators shows: The network link activity Local or remote data received from the computer Indicates a remote viewer is connected Indicates the Ethernet network speed (10 / 100 Mbs) Power indicator

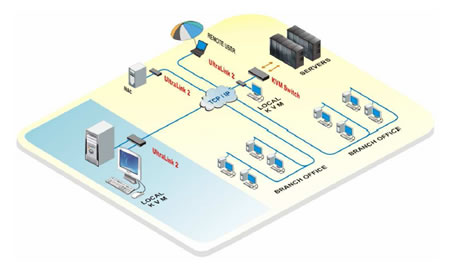

Rose UltraLink 2 Application Diagram
Features & Benefits: IP address, sub-net, gateway, and other network information are easily configured by modifying a simple text file. Connect to a remote computer, server, or KVM switch directly or remotely over IP using any supported Internet browser Virtual Media feature allows authorized remote users to transfer files and folders to a computer. This feature makes upgrades possible from remote locations 2 - PS/2 to USB adapters are provided for using USB keyboards and mice Resolution up to 1600 x 1200 Solid-state embedded unit for maximum reliability Compatible with Rose Electronics KVM switches and most other KVM devices Easy to install and configure using the OSD menu Password security prevents unauthorized configuration and access User ID and password required for remote access Remote application (Real VNC or Java applet) can be installed directly from the unit Up to four simultaneous remote users can access the UltraLink 2 at any one time. Front panel indicators show Link, Local or remote connection, VNC, Network Speed, and Power Flash upgradeable so your unit is always up to date with new features and enhancements
Is the Rose UltraLink the best solution for your remote access needs?
Our engineers can help you select the best solution for your data center needs.
Click here or Call 1-800-638-2638 for a free project evaluation. |
UltraLink 2
UltraLink 2 Features Snapshot: - High-quality video up to 1600 x 1200
- Easy to install and operate
- Connect over IP using any web browser
- Single or Dual access models available
- Secure encrypted operation
- Compatible with most KVM switches
|
