Raritan CAT5 Reach
Extend the distance between your keyboard, monitor, and mouse and your PC or Sun Server up to 1,000'
Access to PC or Sun Servers Connected to KVM Switch
Raritan's Cat5 Reach enables you to locate a CPU or multiple servers connected to a KVM switch from a remote location. The remote user console (keyboard, monitor, and mouse) can be up to 1,000 feet (300 meters) from a CPU or KVM switch. In addition, a local user console (keyboard, monitor, and mouse) can be connected.
- Operate CPU from where you want to be
- Keep CPU in a clean, secure environment
- Protect CPU, applications, and valuable data
- Add a local user console in addition to the remote user console
- Control all servers connected to a KVM switch remotely
Raritan's Cat5 Reach is Easy to Install, Easy to Use, and has Automatic Video Tuning

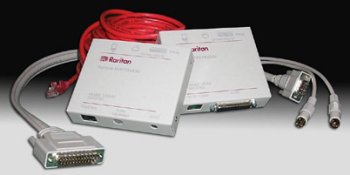

Each Raritan Cat5 Reach comes as a kit that includes a transmitter and receiver pair for use with your Enhanced Category 5 UTP cable. Just plug a keyboard, monitor, and mouse into the receiver and operate. Automatic Video Tuning (AVT) adjusts the video quality automatically--no manual adjustments to make--the receiver does all the work. Raritan Cat5 Reach Features: - Automatic Video Tuning (AVT) in receiver unit adjusts video quality automatically
- High quality video to 1280 x 1024 resolution at 650 feet and 1024 x 768 resolution at 1,000 feet
- Support Macs, Suns, or ASCII terminal devices with Raritan's converters
- Connect a local user console in addition to the remote user console for additional convenience
Raritan Cat5 Reach Specifications of Components Dimensions: 4.3" (W) x 3.6" (D) x 1.0" (H)
108mm (W) x 91mm (D) x 23mm (H)
Weight:
0.5 lbs / 0.2 kg
Power:
No external power required
Connection to PC/switch:
DB25(F)
Connection to Sun/SMX:
DB25(F)
Connection to receiver
RJ45 jack
Receiver for PC or Sun
Dimensions:
4.3" (W) x 3.6" (D) x 1.0" (H)
108mm (W) x 91mm (D) x 23mm (H)
Weight:
0.5 lbs / 0.2 kg
Power:
6V DC 1.4 amp output (included)
PC User Port:
6 pin keyboard and mouse, HD15
Sun User Port:
8 pin keyboard and mouse, HD15
Use 1396C adapter for 13W3 video Connection to transmitter
RJ45 jack
Note: Use Enhanced Category 5 UTP (350 Mhz) cable, with RJ45 connectors. Cable must conform to EIA/TIA T568B Category 5 wiring standard.
Warranty
One-Year Click her for a Free Cat5 KVM Extender Project Evaluation Raritan Cat5 Reach Downloads & Manuals
|
