Raritan's Single Port
KVM over IP Switch

Instant, secure remote access & control down to the BIOS level.

Raritan Dominion KX II-101

Raritan DKX2-101

DKX2-101 Features Snapshot:

  • 256-bit AES Encryption
  • Configurable Strong Password Checking
  • Group and port-level permissions
  • RADIUS and LDAP and Active Directory Authentication
  • Absolute Mouse Synchronization
  • Next Generation Common User Interface
  • Plug and Play Appliance Offers Quick and Easy Setup
  • Non-blocked KVM-over-IP access
  • "Zero-U" form factor
  • Virtual Media
  • Remote Power Control
  • SNMP Management and Syslog
  • Centralized management with Raritan CommandCenter Secure Gateway

Have Questions? Call 1-800-638-2638.

The Dominion KX II 101 is a single port KVM-over-IP switch that gives you instant, secure access and control -- even on servers in remote and rugged locations. Designed as a "zero-U," one port/one user device, it provides non-blocking BIOS level access and control of a single server via a dedicated IP address.

A series of enhanced productivity, efficiency, and security features come standard in the KX II-101:

  • Virtual Media, for transferring files and installing patches and upgrades over IP
  • Absolute Mouse Synchronization, which reduces installation time and has set a new standard for mouse synchronization in KVM-over-IP sessions
  • 256-bit AES encryption and customizable password settings
  • "At the rack" access via a local port
  • Unit can be powered via Power over Ethernet (PoE) or a power adapter
  • Multi-function serial port for local admin, connecting a Raritan PDU, or an external modem
  • Integrated remote power management when used with the Dominion PX intelligent PDU

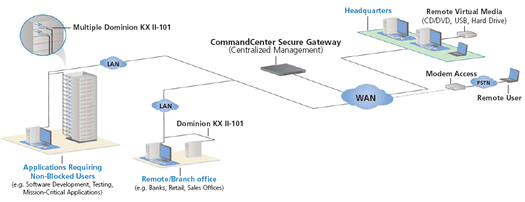

Raritan Dominion KX2-101 Application Diagram
Raritan Dominion KX2-101 Application Diagram

The Dominion KX II-101's unique form factor and non-blocked access make it an ideal remote management platform for:

  • Small businesses or branch offices that need remote access, but where a multiport KVM-over-IP switch is not required
  • Small numbers of servers in remote mission-critical environments where the price of multiport KVM switches is not justified, such as pipeline pumping stations, oil rigs and military installations
  • Environments that require simultaneous, non-blocking connections between large numbers of users and target devices, such as software development labs
  • Environments where remote access to mission critical servers could be blocked by other remote administrators trying to access other servers
  • Environments where target devices are often moved around into different configurations, such as test labs and demo rooms
  • Highly mobile applications such as remote broadcast trucks and police/fire department/EMS mobile command centers
  • Temporary installations such as conventions, trade shows, client/customer sites and construction trailers
  • PC-ped, non-IT devices such as retail/point-of-sale displays, signage and kiosks, as well as medical and military equipment
  • Users who want local port access
  • Administrators who are looking for anytime, anywhere BIOS-level access via the industry's broadest range of browsers (Internet Explorer, Mozilla, Firefox and Netscape

Raritan Dominion KX2-101 Backside View
Raritan Dominion KX2-101 Backside View

Features and Benefits:

  • Non-blocked single-port KVM-over-IP access
  • Virtual Media: Support for CD/DVD-ROMs, Hard Drives, USB Sticks and ISO Image Files
  • Absolute Mouse Synchronization: absolute coordinates are used to keep the client and target cursors in sync, even when the target mouse is set to a different acceleration or speed
  • Security and Encryption: UP-to 256-bit AES or RC4, strong password support, failed log-in lockout
  • Modem Access: an external modem can be connected via the multi-function serial port
  • Remote Power Control: Raritan PDU like the Dominion PX can be connected via the multi-function serial port. Requires an optional power cable.
  • Local Access Port: with optional local port cable
  • Remote User Interface: Browser-based, common user interface; Virtual KVM Client; Multiplatform Client
  • Maximum Video Resolution: 1600 x 1200
  • Centralized Management with CC-SG: available with CC-SG Release 3.2.1 and above
