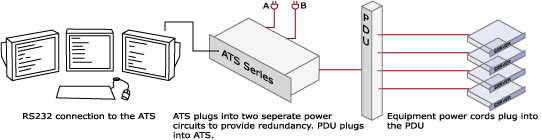

The BayTech Automatic Transfer Switch (ATS Series) provides redundancy to Single Corded Devices with the ability to switch Out-of-Phase Sources in 8 to 15ms. Providing redundancy on the power circuit level is critical to maintaining uptime. The ATS Series provides a simple and reliable solution for automatically sensing power loss and seamlessly switching to a back-up circuit.
BayTech ATS transfer switch line offers a unique approach to performing the transfer by completely severing the connection between the source and load then waiting for the zero-crossing to perform the transfer. This is the driving force behind being able to perform out-of-phase transfers with a low cost solution. Monitoring Power on the ATS is a feature which provides information about: - Amperage Load
- (Watts) True RMS Power
- Volt-amps
- Voltage
- Internal Temperature
Is the BayTech ATS the best Automatic Transfer Switch for your power needs?
Our engineers can help you select the best automatic transfer switch for your power needs.
Click here or Call 1-800-638-2638 for a free data center power project evaluation. |
BayTech ATS
Automatic Transfer Switch
The BayTech ATS offers many features: - Out of Phase Source Switching
- 8-15ms Switching time
- Programmable Dropout Voltage
- Programmable Switchback Voltage
- SNMP and HTTP with DS-Series
- PCB-based Reliability
- Reports Volts, Current, Watts, VA
- Break-Before-Make transfer
|
