NTI VOPEX Cat5 Video Splitter
NTI Cat5 Video Splitter Solutions

VOPEX-C5V-8 Local and ST-C5V-R-600 Remote Unit

NTI VGA Video Splitter/Extender via CAT5
Drive up to 16 remote monitors from one computer

Broadcast up-to-the-minute information to multiple remote monitors in real time using the XTENDEX CAT5 VGA Video Splitter/Extender. This high-resolution VGA video splitter (video port expander) drives video from one computer to 4, 8, or 16 remote monitor screens up to 600 feet away via inexpensive CAT5 UTP cable. This is the ideal solution for any application requiring the flexibility to share information with several locations. Optional audio functionality using self-powered stereo speakers enhances your presentation.

The XTENDEX VGA Video Splitter/Extender system has two components: the VOPEX-C5Vx VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX ST-C5V-R-600 remote unit for each remote monitor. The units are interconnected by CAT5 cable.

• Broadcast real-time VGA video or audio/video to multiple display locations.
• Accompanying audio can be broadcast to self-powered stereo speakers at the local unit and at each remote location.
• Maximum 1024x768 video resolution at 600 feet; higher resolutions are supported at shorter distances.
• Easily expandable. Add remote units as you add monitors.
• Compatible with all NTI A/V switches and splitters, which enables the joining of products to create a system that satisfies all of your networking needs.
• Inexpensive CAT5 cable replaces bulky video cables.
• A pure hardware solution - no software conflicts.

The XTENDEX CAT5 VGA Video Splitter is the ideal solution for a wide range of multi-screen applications. Examples include:

• Give real-time arrival/departure updates to passengers at airports, train stations and bus stations.
• Provide stock and exchange rate updates at stock exchanges and banks.
• Broadcast entertainment or news in stores, restaurants, trains, and planes.
• Broadcast lyrics of hymns to worshippers in churches and to singers in karaoke clubs.
• Advertise products in shopping centers, malls, and stores.
• A great alternative to expensive projectors in the classroom. Send a teacher's screen to all remote monitors.
• Broadcast a presentation to personal monitors of colleagues in conference rooms, boardrooms, or to multiple monitors in a trade show booth or corporate showroom.

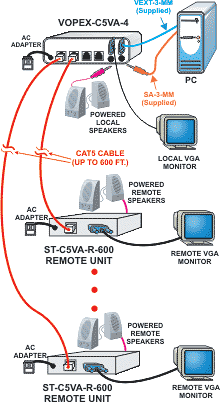

NTI VOPEX Cat5 Application



NTI VOPEX Local Unit

Video Input

• Supports PC, SUN and MAC.
• Male 15-pin HD connector.
• Input frequency ranges:
• Horizontal: 15 kHz to 130 kHz.
• Vertical: 30 Hz to 150 Hz
• Supports Separate and Composite TTL level sync and Sync on Green.
• Input impedance: 75 Ohms.
• Maximum input levels for video: 1.45 p-p.
• Video is DC coupled.

Video Output

• Female 15-pin HD connector for local monitor.
• Compatible with SVGA, XGA, and VGA.
• 1920x1440 video resolution.
• Output impedance: 75 Ohms.
• Maximum output level for s-video: 1.45Vp-p

Optional Audio

• Stereo audio can be heard both locally and remotely.
• 3.5mm female stereo audio jacks.
• Frequency response: 20 Hz to 20 kHz, +/- 1 dB.
• Signal-to-Noise Ratio (SNR): 76 dBA.
• Total Harmonic Distortion and Noise (THD+N): 0.017%
• Stereo Crosstalk: -70 dB.
• Input impedance: 10k Ohms.
• Line level output; supports multimedia speakers.
• Maximum I/O levels for audio: 3.1 Vp-p (line level).


Cables

• 3-foot VGA cable included.
• 3-foot audio cable included with unit with audio option.
• CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

Power

• 110 or 220 VAC at 50 or 60 Hz via AC adapter.

Environmental

• Operating temperature: 32°F to 100°F (0°C to 38°C)
• Storage temperature: -20°F to 140°F (-30°C to 60°C)
• Operating and Storage Relative Humidity: 17 to 90% non-condensing RH

Distances and Resolutions for CAT5/CAT5e and CAT6 cables
Cable	Distance (feet)	Resolution
CAT5/ CAT5e	600	1024x768 at 60Hz
	400	1280x1024 at 60Hz
	300	1600x1200 at 60Hz
	100	1920x1440 at 60Hz
CAT6	300	1024x768 at 60Hz
	200	1280x1024 at 60Hz
	100	1920x1440 at 60Hz



CAT 5 VGA VIDEO SPLITTER / EXTENDER SIZES
Supported Features	Local or Remote	NTI Part #	# of Ports	Local Unit Size WxDxH(In.)	Price $
VGA Video	Local	VOPEX-C5V-4	4	8x6.25x2.5	285
VGA Video	Local	VOPEX-C5V-8	8	8x6.25x2.5	345
VGA Video	Local	VOPEX-C5V-16	16	8x6.25x2.5	595
Video + Audio	Local	VOPEX-C5VA-4	4	8x6.25x2.5	380
Video + Audio	Local	VOPEX-C5VA-8	8	8x6.25x2.5	455
Video + Audio	Local	VOPEX-C5VA-16	16	8x6.25x2.5	810
VGA Video	Remote	ST-C5V-R-600	NA	3.5x3.1x1.2	170
Video + Audio	Remote	ST-C5VA-R-600	NA	3.5x3.1x1.2	215
