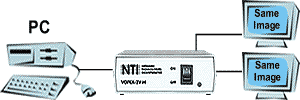

Use One PC to Display the Same High-Resolution Image on Two Monitors
These S-video splitters (video port expanders) enable 2 S-video monitors to be driven by a single video source. The same image is displayed on both monitors. Supports high-resolution (800x600).
This S-Video Splitter is an economical way to double the video output of your DVD player, Satellite receiver, etc. This unit will drive two long cables and monitors simultaneously.
| NTI S-Video Splitter Features & Applications |
 | - Both outputs are individually buffered.
- Input and output connectors located on rear panel.
- Has 150 MHz bandwidth.
|
| |
| | |
NTI S-Video Splitter Specifations |
Video Input - Female 4 pin mini-DIN input connector.
- 75 ohm input impedance.
Video Output - Female 4 pin mini-DIN output connectors.
- Both outputs individually buffered.
- Outputs drive standard 75 ohm loads.
- 800x600 resolution with no degradation
| Size - 4.90"W x 5.2"D x 1.7"H
Power and Miscellaneous - 110 or 220 VAC at 50 or 60 Hz via AC adapter
- 3-foot multicoax interface cable included
|
