NTI  VEEMUX Matrix Video Only Switch
NTI Video Only Switch Solutions

VEEMUX SM-8x8-15V-LCD (Front & Back)
Video Matrix Switch

NTI VEEMUX Matrix Video Only Switch

SWITCH MANY COMPUTERS'OUTPUTS AMONG MULTIPLE MONITORS
NEW feature included with Universal Video Matrix switch,
Matrix Control Software with Graphical User Interface (GUI control)

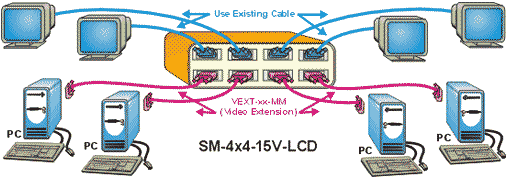

The SM-nXm-15V-LCD Video Matrix Switch allows you to connect multiple video sources (computers) to multiple destinations (projectors, monitors, etc.). This lets signals from a range of input sources be displayed on various output devices, in essence creating a "matrix" pattern of interconnection possibilities. A Video Matrix Switch often acts as the core of a signal management system in presentation applications, as they simplify the process of handing signal routing.

Each matrix switch output is buffered from each input, insuring that signal integrity is maintained throughout the system. For example, if a single computer video output is routed to ten computer video monitors, it will appear as if they were connected directly to the original source.

Video Matrix Switch Features & Applications

• Matrix Control Software with Graphical User Interface (GUI control) is included with the product.

• Liquid Crystal Display (LCD), RS232 and On Screen Display (OSD) are built directly into this switch.

• No additional hardware or software is needed.

• Rackmount is standard on all SM-nXm-15V-LCD models. Some models are also available in a desktop case. To order a unit with a desktop case, add "-DT" to the NTI part number.

• Ideal for classroom, presentations and boardrooms.

• Switch video from many sources for presentations.

• Each computer's video can be independently connected to any or all displays.

• LCD indicators show currently selected channel of each output.

• Custom configurations are available.

AVAILABLE SIZES
NTI Part #	# of Video Inputs	# of Video Outputs	Size (In.) WxDxH	Rack Units	Rack Size (In.) WxDxH
SM-4X2-15V-LCD	4	2	10X7.5X3.3	2RU	19x10x3.5
SM-8X2-15V-LCD	8	2	10X7.5X3.3	2RU	19x10x3.5
SM-16X2-15V-LCD	16	2	N/A	2RU	19x10x3.5
SM-32X2-15V-LCD	32	2		3RU	19x10x5.3
SM-4X4-15V-LCD	4	4	10x7.5x3.3	2RU	19x10x3.5
SM-8X4-15V-LCD	8	4	10x7.5x3.3	2RU	19x10x3.5
SM-16X4-15V-LCD	16	4	N/A	2RU	19x10x3.5
SM-32X4-15V-LCD	32	4		3RU	19x10x5.3
SM-4X8-15V-LCD	4	8		3RU	19x12x5.3
SM-8X8-15V-LCD	8	8		3RU	19x12x5.3
SM-16X8-15V-LCD	16	8		3RU	19x12x5.3
SM-32X8-15V-LCD	32	8		5RU	19x12x8.8
SM-16X12-15V-LCD	16	12		4RU	19x12x7
SM-16X16-15V-LCD	16	16		4RU	19x12x7
SM-32X16-15V-LCD	32	16		7RU	19x12x12.3
