NTI  XTENDEX CAT5 KVM Extender
 NTI Low Cost CAT5 KVM Extenders

XTENDEX ST-C5V-500 LOCAL & REMOTE UNIT

KVM EXTENDER / VIDEO EXTENDER Extend KVM or VGA Video via CAT 5

EXTEND CONTROL UP TO 500 FEET AWAY FROM PC OR NTI KVM SWITCH WITH NO LOSS OF SIGNAL

Also known as: KVM extender, kvm extension, pc extender, video extender, keyboard monitor mouse extend.

NTI XTENDEX Features & Applications

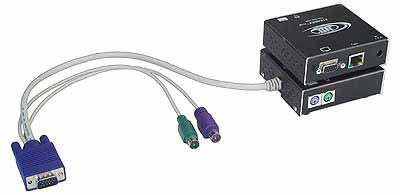

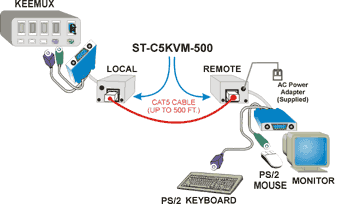

The XTENDEX KVM Extender is the affordable way to extend a monitor, keyboard and mouse up to 500 feet away from a PC or NTI KVM switch. The XTENDEX ST-C5KVM-500 can be used to provide remote access to network servers, or in situations where a control station is located in an unsecured area, or where equipment damage can occur, such as shop floors and loading docks. Each KVM extender consists of a Local unit connected to a server or the outputs of an NTI switch, and a remote unit connected to a monitor, keyboard and mouse or the inputs of an NTI switch. The local and remote units are connected with CAT 5 cable. This extender provides support for PS/2 wireless keyboards and mice and Internet keyboards.		The XTENDEX Video Extender extends the distance between two VGA video devices using CAT5 cable. Use XTENDEX ST-C5V-500 units in applications where the monitor needs to be located remotely from the CPU. Each video extender consists of a local unit connected to a computer or the output of an NTI switch, and a Remote unit connected to a monitor or the input of an NTI switch. The Local and Remote units are connected with CAT5 cable. XTENDEX units are the economical choice to increase the distance between VGA video devices, thus improving the flexibility of your systems.
Allows remote access to network servers. Compatible with PS/2 keyboards and mice, PS/2 wireless keyboards and mice, and PS/2 Internet keyboards. Transparent extension - no keyboard/mouse features are lost. Use in-house (CAT5) phone wiring to locate a keyboard, mouse and monitor remotely. Video equalization control compensates for image quality loss over long distances. Small durable form factor increases desk and floor space.		Allows remote access to information from network servers. Use in-house (CAT5) phone wiring to locate a monitor remotely. Support for a local monitor is standard. Supports any VGA monitor. Small durable form factor increases desk and floor space.
Both KVM and Video Extenders are are easy to install and use. CPUs remain protected from moisture, vibration, temperature extremes, electro-magnetic fields, and theft. Useful for loading docks and warehouses where physical security of important information on back-office computers is required. Excellent for factories where heat and dust can potentially destroy expensive computers. Construction sites can disseminate information appropriately without exposing CPUs to the harsh elements.

NTI EXTENDEX Specifications

ST-C5KVM-500 Distance 500 feet. Input Any PC or KEEMUX Switch. Male 15 pin HD connectors on the Local Unit. PS/2 keyboard & mouse connectors. Output Crisp & clear 1280 x 1024 resolution to 500 feet. Female 15 pin HD connector on the Remote unit. PS/2 keyboard & mouse connectors. Video Quality Adjustment Recessed push buttons on top of the remote unit. Continuous adjustment of video signal quality is possible depending on the length of time the + or - push buttons are depressed. The setting is automatically saved to the unit. The next time the unit is powered the adjustment will be recalled. Power Local Unit - Powered by CPU. Remote Unit - 110v or 220v at 50 or 60 Hz via adapter.

ST-C5V-500 Distance 500 feet. Input Any VGA computer or output of a VEEMUX switch. Male 15 pin HD connectors on Local unit. Output Crisp & Clear 1280x1024 resolution to 500 feet. Female 15 pin HD connectors on the Remote unit. Female 15 pin HD connectors on the Local unit. Video Quality Adjustment Recessed push buttons on top of remote unit. Continuous adjustment of video signal quality is possible depending on length of time the + or - push buttons are depressed. The setting is automatically saved to the unit. The next time the unit is powered the adjustment will be recalled. Power Local Unit - Powered by Remote Unit. Remote Unit - 110v or 220v at 50 or 60 Hz via adapter.

NTI Extendex Available Sizes & Interface Cables Supported Devices NTI Part # Compatibility Local Unit To Remote Unit Size (In.) WxDxH Rack Units WxDxH(In.) PDF Manual Multiscan Video Monitor, Keyboard & Mouse ST-C5KVM-500 PC CAT5 500 Feet 2.2x3.5x1.8 NA NA   Multiscan Video Monitor ST-C5V-500 Any VGA NA NA

Extend control up to 1000 feet away with the NTI XTENDEX-ST-C5KVM & XTENDEX-ST-C5V
