Minicom by Tripplite SmartRacks are an efficient and effective way to control and manage servers in a rack.

Minicom by Tripplite SmartRacks offer Local and Remote Access

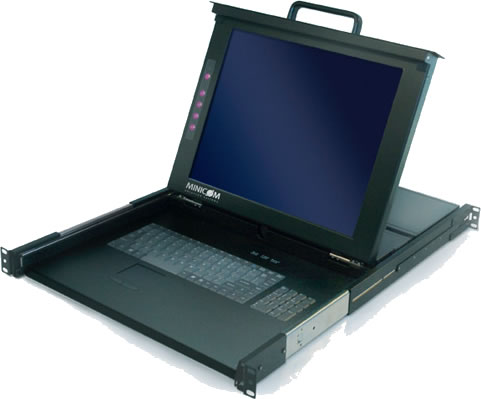

The SmartRack series comes with either a 116 switch for local access, a 116 IP switch for combined local and remote access, and a 232 switch with IP or USB extender options for the second user. To access servers, just slide out the drawer and flip up its top to display the large, high resolution 17" TFT LCD display. The display is (VGA/SVGA/XGA/SXGA compatible) with front-panel high-quality controls and Touchpad for easy adjustment. It features triple layered security and plug-and-play installation.

Minicom by Tripplite SmartRacks Control More Servers

The SmartRack KVM switches are compatible with all major operating systems and can control any server's brand and model, regardless of the server condition and network connectivity, covering the entire spectrum of crash scenarios. Use the KVM switch to control up to 16 servers in multiple platforms (PS/2, USB). Minicom's innovative ROC technology has each computer/ server directly connected to the switch via a ROC using standard CAT5 cable at a distance of up to 30m/100ft in a star configuration.

Minicom SmartRack 116IP
Minicom SmartRack 116IP

Slim, 1U Solution that Saves Space

The SmartRack KVM switches are a single rail solution that occupies just 1U of rack space; it's the most efficient way to control your server rack.

Minicom by Tripplite SmartRacks Key features

The SmartRack 116 IP and SmartRack 232 extends your KVM (keyboard, video, and mouse) from any computer or server over TCP/IP via LAN, WAN or Internet connection. Now you can control, monitor and manage up to 16 or 32 remote servers from wherever you are, inside or outside the organization. The SmartRack 116 IP is a cost-effective hardware solution, for secure remote KVM access & control of 16 computers/servers from the BIOS level - independent of the OS. One local analog or one remote digital IP user can access and control 16 multi-platforms (PS/2, USB) servers at a time. The SmartRack 232 allows two user simultaneous access and control of up to 32 mixed-platform (PS/2 and USB) servers. The SmartRack 232 gives the possibility to extend the second user via IP or with the KVM Extender USB.

Minicom by Tripplite SmartRack 116IP / 232 Web-based control

Browser Control to a target server, from any location via secured standard IP connection.

Minicom by Tripplite SmartRack 116IP / 232 Multi-user view mode

Allows simultaneous users to view remote sessions. Remote control can be intuitively handed between users with appropriate permissions.

KVM.net II

Can be controlled by the Minicom's KVM.net II system for centralized over-IP management of distributed data center locations

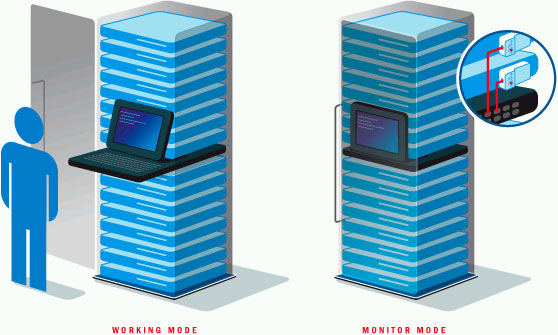

Minicom by Tripplite SmartRack 116IP Diagram

Minicom by Tripplite SmartRack Features and Benefits

  • Combined KVM switch and rack console for total control

  • Supports multiple platforms (PS/2, USB) and mixed server environments

  • Occupies a mere 1U of rack space, adjustable to various rack depths

  • Sophisticated control options with multi-layered security

  • Plug-and-play installation

  • 17" TFT LCD display

Minicom by Tripplite SmartRack Downloads & Manuals


Minicom by Tripplite SmartRack 16 Ordering InformationPart Number

Online Pricing

SmartRack 17" Standalone0SU52088

Buy the SmartRack 17" Rackmount LCD Drawer w/ Touch Pad online

SmartRack 116 17" KVM drawer w/switch0SU52091

Buy the SmartRack 116, Rackmount LCD w/ 16 Port CAT5 KVM online

SmartRack 116IP 17" KVM-over-IP drawer w/switch0SU70050

Buy the SmartRack 116 IP, Rackmount LCD w/ 16 Port ipKVM online

SmartRack 232 17" KVM drawer w/32 port switch0SU52098

Buy the SmartRack 232 Rackmount LCD w/ 32 Port KVM online

ROC PS/20SU51078

Buy the Minicom ROC PS/2 dongle online


Buy the Minicom ROC USB dongle online
