The Minicom Phantom MXII KVM switching solution takes server management to a higher level of operation.

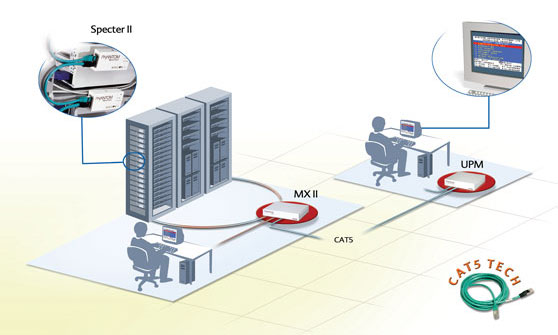

Now two Phantom users can simultaneously control and manage up to 63 servers in mixed, multi-platform environments (PS/2, SUN, RS-232, USB) from two separate KVM consoles.

This makes it an ideal solution for larger data centers that require more than one supervisor and need the flexibility of operating from both local and remote locations.

Minicom by Tripplite Minicom Phantom MX II Advanced Management and Security Options

The Minicom Phantom MX II features advanced On Screen Display (OSD) management, including multi-layered security, the most efficient way for monitoring, accessing and controlling your servers.

You can also manage your Phantom system, via serial port, using the Phantom's Control Software or any other third party software.

Less Switch Space Means More Server Space

Phantom's Distributed Switching Technology (DST) divides the KVM switch into smaller subunits: two Managers and multiple Remote units. The Remote units can be placed on the side or back of the rack (Specter II Units) where they occupy no rack space! Now you can dedicate more of your rack to servers instead of wasting space on switches.

Minicom by Tripplite Minicom Phantom MX II Components
The Phantom MX II system consists of the following units:

• 1 Phantom MX II Manager unit per system


  Minicom Phantom MX II (front View)	Minicom Phantom MX II (rear view)

• 1 Universal Phantom Manager (UPM) unit per system


  Minicom Phantom UPM (front view)	Minicom Phantom UPM (rear view)

• 1 Remote unit per computer (Specter II) up to 63 per line


  Minicom Phantom Specter II PS2	Minicom Phantom Specter II Sun
  Minicom Phantom Specter II USB	Minicom Phantom Specter II Serial

Minicom by Tripplite Phantom MX II Features and Benefits

• Phantom MX II offers non-blocking, multi user control of up to 63 servers on a single line
• Phantom MX II Multi-Platform Support - PS/2, SUN, USB, RS-232
• Phantom Specter II Zero U rack space - more room for servers
• Phantom MX II Advanced OSD management and multi-layered security
• Phantom MX II is a pure hardware solution - BIOS level access
• Phantom MX II utilizes low density CAT5 cabling that ends cable clutter
• Phantom MX II is fully scalable - buy only what you need and add as you grow
• Phantom MX II flexible server/KVM console placement up to 110m/360ft away
• No external power supply at Minicom Specter II units

• Phantom MX II comes with a 3 year warranty

Minicom by Tripplite Phantom MXII Downloads & Manuals

Minicom by Tripplite Phantom MX II Specifications
Minicom Phantom MX II System
Number of Remote units	63
System Cable	CAT5 FTP 2x4x24 AWG Solid Wire
Maximum Distance	110m/360ft
Resolution	Up To 1600x1200@75Hz
Mouse Support	PS/2, Wheel mouse
Operating Systems	DOS,Windows (3x,9x,2000,NT4,ME,XP),LINUX,UNIX,HP UX QNX, SGI,FreeBSD,BeOS,Open VMS,NOVELL 3.12-6
Management	On Screen Display (OSD), RS-232 Control Software
Security	Password, multiple user Profiles
Scan	Automatically view all screens at adjustable intervals from 5-995 seconds
Operating Temperature	0° to 40°C/104°F
Storage Temperature	-40°C to 40°C/-40°F to 104°F
Warranty	3 years

Minicom Phantom MX II Manager Units
Type	UPM MX II
Cables/Connectors	CPU Cable-3 in 1 Screen-HDD15M KB-MiniDin6M Mouse-MiniDin6M System Out-RJ45 Service-RJ11 RS232-DB9 CPU Cable-3 in 1 Screen-HDD15M KB-MiniDin6M Mouse-MiniDin6M System Out-RJ45 Service-RJ11 RS242-DB9 Second User-RJ45
Rack Mountable	Yes
Dimensions	41.5Hx180Dx204.5Wmm / 1.63Hx7.09Dx8.05W" 41.5Hx180Dx226Wmm / 1.63Hx7.09Dx8.90W"
Power Consumption	100-240 VAC 600mA

Minicom Phantom MX II Remote Unit
Type	Specter II PS/2 Specter II SUN Specter II USB Specter II RS232
Cables/Connectors	VGA-HDD15M KB-MiniDin6M Mouse-MiniDin6M System In/Out RJ45 VGA-HDD15M KB/Mouse-MiniDin8M System In/Out RJ45 VGA-HDD15M KB/Mouse-USB System In/Out RJ45 Data-DB9F Power-USB System In/Out RJ45
Dimensions	28Hx45Dx86Wmm/1.10Hx1.77Dx3.39W"
Weight	260g/0.57lb
Shipping Weight	800g/1.76lb
Power Consumption	From KB/Mouse port 5VDC 300mA From KB/Mouse port 5VDC 300mA From KB/Mouse port 5VDC 300mA From USB port/PS/2 with adapter/ Ext.P.S. with adapter 5VDC 300mA





Minicom by Tripplite Phantom MX II Ordering Information	Part Number	Online Pricing
PHANTOM MX II (MULTI USER)	0SU52016A
UNIVERSAL PHANTOM MANAGER	0SU52015A
PHANTOM SPECTER II PS/2	0SU51012
PHANTOM SPECTER II USB / SUN USB	0SU51011
PHANTOM SPECTER II RS-232	0SU51014A
Power Supply + Cable Kit For Specter PS/2 and USB	0SU80001A
Rack Mounting Plate for UPM & MX II	5AC00202
