The DS Vision 3000 is a modular system, made up of units that can be exactly molded to your network requirements without excess hardware. The result is a digital signage network streamlined in function and cost-effective on budget. This digital signage solution narrowcasts high-definition video and stereo-audio from a single player, over CATx cable, to multiple plasma/LCD screens located up to 600m/2000ft away. Combined with full serial command, the DS Vision 3000 is the ultimate solution for controlling and delivering real-time multimedia content.
Featuring full RS-232 bidirectional communication, DS Vision 3000 gives you the ability to remotely query screen operation time which is essential for monitoring the remaining life of your screens and a valuable precursor to measuring advertising effectiveness. The system also enables power commands that turn either the entire screen network or screen groups on/off. Screen wear and tear is thus minimized while maximizing the life of your digital signage network.
With extended range, DS Vision 3000 gives you the freedom to set-up your LCD/plasma screens at any desired location, without fear of compromising your media quality and safe in the knowledge that your media player is out of sight and out of unauthorized hands. Whether multiple-screen timetables and advertisements, or single-screen bulletins, signs and training aids, DS Vision 3000 delivers your message, picture perfect, every time.
The DS Vision 3000 consists of the following components:
- Broadcaster 8/16 port
- Line Splitter 8 port
- Remote (110m/360ft)
- Remote Long (600m/2000ft)
- Video Tuning Unit

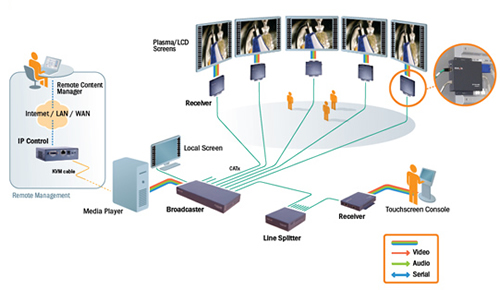

Minicom DS Vision 3000 Typical Application
Minicom DS Vision Features
- 600m/2000ft range
- Supports HD resolutions
- Stereo-audio
- Remote screen query
- Group screen on/off command
- Palm-held video tuning unit
- CATx cable flexibility
- DDC support
- Out-of-band operation
- VESA standard mounting
DS Vision System Specifications
