Minicom AVDS Cat5 Audio Visual Display System: Broadcast high-resolution computer video and audio to multiple display stations

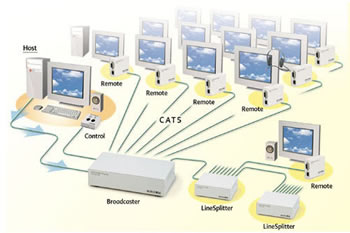

The Minicom AVDS Cat5 Audio Visual Display System allows you to broadcast any video content you want directly to the public. The system's standard CAT5 cabling lets you place the remote display stations up to 110m/360ft away from the source. The ideal solution for a wide range of large multi-screen applications, use the Minicom AVDS Cat5 Audio Visual Display System to:
* Give real-time arrival/departure updates to passengers at airports, train stations, bus stations, etc.
* Provide stock and exchange rate updates at stock exchanges, banks, etc.
* Broadcast entertainment or news in stores, restaurants, trains, planes, etc.
* Broadcast lyrics of hymns to worshippers in churches, to singers in karaoke clubs, etc.
* Advertise products in shopping centers, malls, stores, etc.
* Broadcast a PowerPoint presentation to personal monitors of colleagues in conference rooms, boardrooms, etc.
Minicom AVDS Cat5 Audio Visual Display System Broadcaster

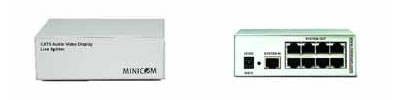

Minicom AVDS Cat5 Audio Visual Display System Line Splitter
Minicom AVDS Cat5 Audio Visual Display System Remote
On-Line Maintenance
The Minicom AVDS Cat5 Audio Visual Display System provides the option of darkening all remote monitors to allow discreet, online maintenance at any time.
Classroom Presentation
The Minicom AVDS Cat5 Audio Visual Display System is also a powerful presentation tool in computer classrooms and training environments and a great alternative to expensive projectors. In the classroom, the Minicom AVDS Cat5 Audio Visual Display System can perform two important training functions with a simple 2-button controller: send a teacher's screen to all remote monitors or darken all remote monitors to gain students'undivided attention.
Minicom AVDS Audio Visual Display System Downloads & Manuals
| Minicom AVDS Audio Visual Display System Specifications |
| System |
| Resolution | Up to 1600x1200 @ 75Hz |
| Input/Output Video Signals | Analog signal red, green, blue 0.7v p-p 75 Ohn
|
| Sync | TTL compatible |
| Horizontal/Vertical Sync Polarity | Positive/Negative
|
| System Cable | CAT5 Shielded FTP Cable |
| Maximum Distance | 110m/360ft |
| Audio | Mono |
| Operating Temperature | 0° C to 40° C/32° F to 104° F
|
| Storage Temperature | 40° C to 40° C/-40° F to 104° F |
| Warranty | 3 Years |
| | Broadcaster | Line Splitter | Remote |
Cables & Connectors
| VGA In - HDD15M
VGA Out - HDD15F
System Out - 8 Ports RJ45
Mic/Headphone/Sc
In/Out - Jack
Controller - MiniDin8F | System in - RJ45
System Out - 8 Ports RJ45
| System in - RJ45
CPU VGA - HDD15M
Screen - HDD15F
Audio In/Out - Jack
|
Dimensions
| 42Hx96Dx175Wmm / 1.65Hx3.78Dx6.89W" | 42Hx96Dx121Wmm / 1.65Hx3.78Dx4.76W" | 34Hx73Dx84Wmm / 1.34Hx2.87Dx3.31W" |
Power
| External Power Adapter 12VDC 2A | External Power Adapter 12VDC 2A | From Previous Unit
|
| Minicom AVDS Audio Visual Display System Ordering Information | Part Number | Online Pricing |
| CAT5 AUDIO VIDEO DISPLAY BROADCASTER | 0VS22014A |  |
| CAT5 AUDIO VIDEO DISPLAY LINE SPLITTER | 0VS22015A | |
| CAT5 AUDIO VIDEO DISPLAY REMOTE | 0VS23009 | |
| CAT5 AUDIO VIDEO DISPLAY POWER REMOTE | 0VS22036A | |
| CAT5 AUDIO VIDEO DISPLAY TRANSMITTER | 0VS22038 | |
