Dominion KX2-101 V2

Enterprise-class KVM-over-IP technology in a palm-size device.

Raritan Dominion KX II-101 V2

Raritan DKX2-101 V2

DKX2-101 V2 Features Snapshot:

  • 256-bit AES Encryption
  • Configurable Strong Password Checking
  • Group and port-level permissions
  • RADIUS and LDAP and Active Directory Authentication
  • Absolute Mouse Synchronization
  • Next Generation Common User Interface
  • Plug and Play Appliance Offers Quick and Easy Setup
  • Non-blocked KVM-over-IP access
  • "Zero-U" form factor
  • Virtual Media
  • Remote Power Control
  • SNMP Management and Syslog
  • Centralized management with Raritan CommandCenter Secure Gateway

Have Questions? Call 1-800-638-2638.

Dominion KX II-101 V2 is a next-generation KVM-over-IP device that eliminates the blocking factor inherent in switched KVM architectures to provide anytime, anywhere access and BIOS-level control of a single server, via a dedicated IP address

The KX2-101 V2 provides the secure access and control of a full-featured KVM-over-IP switch in an inexpensive, portable, nonblocking, palm-size package that gives you secure remote access and control – especially for servers outside the data center. Designed as a zero-U, one port, multiuser device, it provides nonblocking, BIOS level, IP access and control – anytime, anywhere.

Click here to see the next generation Dominion KX III

Productivity, efficiency and security in a “zero-U,” single-port device:

  • Palm-size and highly portable, the Dominion KX II-101 V2 can be mounted vertically or horizontally on the side of a rack, making it ideal for small, remote locations with a limited number of servers
  • Multiple Dominion KX II-101 V2 devices can be installed in a data center, lab environment or remote offices to provide fully non-blocked, switchless access by any user to any server – even if the OS is unavailable – reducing downtime, MTTR and labor costs
  • Dominion KX II -101 V2 features Absolute Mouse Synchronization™ , which reduces installation time and sets a new standard for mouse synchronization
  • Virtual media gives users the ability to transfer files for patches and upgrades from any location, speeding up the upgrade process and reducing travel costs
  • Dominion KX II -101 V2 also provides a greater level of security than other remote access methods, feature-rich management functionality and the highest quality video available, all over an IP network

Raritan Dominion KXII-101 V2 Application Diagram
Raritan Dominion KX2-101 V2 Application Diagram

Beyond remote access and control for data centers, the KX II-101 V2 provides KVM over IP access in many diverse environments including:

  • Remote and Branch Offices
    • Banks, retail stores, medical, legal and branch offices of all types
    • State, county and municipal governments
  • Development and Test Labs
    • Unblocked server access for critical servers
    • Portability for dynamic environments
  • IP Enabling of Analog KVM Switches
    • KVM over IP without the rip-and-replace
  • Hosted Environments and Cloud Computing
    • Customer access to hosted and off-premise servers
    • Remote troubleshooting
  • Closets, Cubes, Desktops and Home Offices
    • Remotely access servers and PCs outside the data center
  • Nontraditional Environments
    • Inexpensive, portable with zero-U mounting
    • Mobile, temporary, military and tech support use cases

A full set of features plus an innovative user interface

The Dominion KX II-101 V2 is a small but complete package of KVM-over-IP innovations. It works with the industry’s widest range of browsers and operating systems, so you can use almost any combination of OS and browser. It also incorporates Raritan’s Virtual KVM Desktop™ features to provide a user experience that is indistinguishable from an at-the-rack connection.

Dominion KX II-101 V2 is incredibly scalable. And because it is CommandCenter®-certified, a large number of Dominion KX II-101 V2 units can be integrated through Raritan’s CommandCenter Secure Gateway into a single logical network, with a single sign-on from a single IP address.

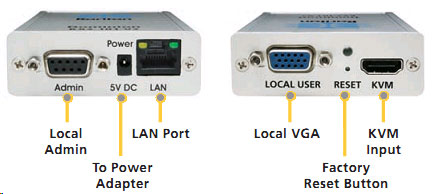

Raritan Dominion KX2-101 Backside View
Raritan Dominion KX2-101 V2 Backside View

Features and Benefits:

Easy to Use

  • Absolute Mouse Synchronization reduces installation time and sets a new standard for mouse synchronization
  • Virtual KVM Desktop creates a user experience virtually indistinguishable from a local server connection
  • PC share mode lets up to eight users remotely access the same server for collaborative troubleshooting
  • Plug-and-play appliance is easily installed; up and running in minutes
  • Firmware upgradeable over IP network connection

Multiplatform Support

  • Supports Windows®, Mac®, Linux® and Solaris™ platforms
  • Works with Raritan’s Multiplatform Client (MPC)


  • Small form factor fits in many environments
  • Serial admin console port allows local configuration and diagnostics
  • Multifunction serial port enables the connection of a modem for out-of-band access
  • emote power management capabilities when integrated with Dominion PX™ Intelligent Power Distribution Units (iPDUs)
  • Keyboard and mouse connections can be hot-plugged on most operating systems without affecting the target server
  • Direct port access can be established for quick access to target server
  • Factory default settings can be reapplied via the factory reset button or by resetting the factory defaults through the serial admin console port
  • The KX II-101 V2 can be swapped while the target server is still on, minimizing server downtime
  • USB or PS/2 connectivity from same unit
  • Mounts horizontally or vertically on side of rack (brackets included)


  • Up to 256-bit AES encryption
  • Secure encryption of keyboard, mouse and video signals, as well as virtual media
  • Supports strong password settings and password retry lockout
  • Supports RADIUS, secure LDAP and Active Directory® – authenticating users from existing accounts
  • Uses access control lists to grant, restrict or deny access
  • Inactivity timeouts prevent unauthorized access to unattended remote consoles
  • Ability to disable Telnet/SSH access


  • Provides remote access and BIOS-level control where deployment of a multiport KVM switch is not economical
  • Tightly integrated unit in a zero-U form factor saves rack space
  • Minimizes expensive and inconvenient travel to remote locations
  • Comes complete with AC/DC adapter, KVM cable and mounting hardware
  • Allows IT staff to leverage system expertise across multiple sites

Enhanced with highest quality KVM-over-IP experience

  • Adaptive video settings for lower bandwidth situations
  • Sets a new record for Raritan’s award-winning video quality, with support for 32,000 colors
  • Supports up to 1600x1200 remote video resolution
  • Virtual KVM Desktop:
    • Full-screen video, without window borders or toolbars
    • Transparent keyboard handling sends virtually all key strokes to the target server for a more seamless user experience
    • Advanced video resolution detection for fast video response and accuracy on a wide range of remote screens
    • Flexible video scaling, lets users adjust window size from thumbnail to full-screen view
