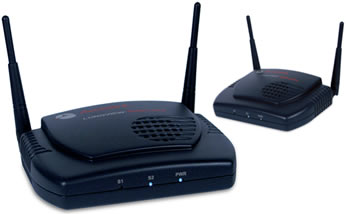

Avocent LongView Wireless Extender
A first of its kind, the Avocent LongView Wireless KVM extender transmits PS2 Keyboard & mouse, VGA video and audio signals up to 100ft away from a target source. The proprietary 802.11 wireless signals can transmit high-resolution Advanced Encryption Standard (AES) video through walls and other obstructions all without using standard extension cables. Advanced OSD management permits users to fine-tune video settings to optimal levels.
The Avocent LongView Wireless extender is the world's first wireless keyboard, video and mouse (KVM) extender.
It can wirelessly connect monitors (VGA, SVGA and XGA), keyboards, mice and audio devices to any computer, up to 100 feet away.
LongView Wireless extension, based on the 802.11a standard and Advanced Encryption Standard (AES), connects directly to target devices. It serves as the radio interface link so the computer can transmit secure audio and high-resolution video data through walls - all without VGA cables.
LongView Wireless Features and Benefits
LongView Wireless Extends: monitors, keyboards, mice and audio devices to a computer - without the use of cables
LongView Wireless Plug and Play: installation requires no new operating system, drivers or application software
LongView Wireless Advanced Encryption Standard (AES) provides secure connections
LongView Wireless Graphical On-Screen Display (OSD) allows you to make adjustments and tune video settings
LongView Wireless Proprietary design is based on the 802.11a standard
Avocent LongView Wireless Diagram
Avocent LongView Wireless Specifications
| Mechanical | | Height | | 1 7/8" |
Width | | 6¼" |
Depth | | 5¼" |
Weight | | 1 lb. Transmitter and Receiver |
| | | |
| Environmental | Operating Temp | | 32° F (0° C) to 104° F (+40° C) |
Storage Temp | | 4° F (-20° C) to 122° F (50° C) |
| | | |
| Power | Operating Voltage | | |
Power Frequency | | 12 VDC@1A from supplied 100-240 VAC 50/60 Hz switching power supply |
| Input | | |
| | | |
| Supported Hardware | Computers | | Most standard IBM compatible computers (with the exception of Macintosh) |
Monitors | | VGA, SVGA, XGA |
Peripherals | | PS/2 keyboard, PS/2 mouse, extended speakers |
| | | |
| Standards | Approved Agency | | |
|
| LongView Wireless KVM Solution (300 feet) | LV3500W-001 |
Corporate & Government Discount Pricing is available at 1-800-638-2638 |
