Rose Crystalview Fiber KVM Extender
Digital Fiber KVM Extender

Rose CrystalView fiber KVM extender Advantage

Whether you want to place computers in a secure rack, are contending with cables in a hazardous electromagnetic area, or simply need greater distance
between your KVM workstation and your computers, CrystalView fiber excels at extending your KVM signals. Units are available as standalone units or as cards mounted in a chassis.

CrystalView fiber is perfect for development labs, television studios, kiosks, banks, educational institutions, airports, offices, shipboard, aircraft, as well
as harsh industrial environments such as factories or manufacturing plants. Fiber is virtually immune to lightning, power surges, electromagnetic interference, and radio frequency interference (RFI). Since the data
sent is digital, you'll always have a clear picture not always possible when using Cat5 extenders.

Maybe you want to relocate your computer for protection against a harsh environment, an insecure area, or a better place for maintenance. Then again
maybe the computers have to stay where they are and it's the operator that needs to be in a control room or at an office desk.

Compatible with all Rose KVM products, CrystalView fiber offers a perfect solution for any application in which you need greater distance, a clearer picture, more reliability, or more security between computers or servers
and workstations. Fiber gives you greater distance, clarity, security, and noise immunity.

Rose CrystalView fiber KVM extender Features and Benefits

• Digital operation for a clear picture unaffected by distance
• Video resolution up to 1280 x 1024
• 24 bit color resolution
• Several models available
• PC single access

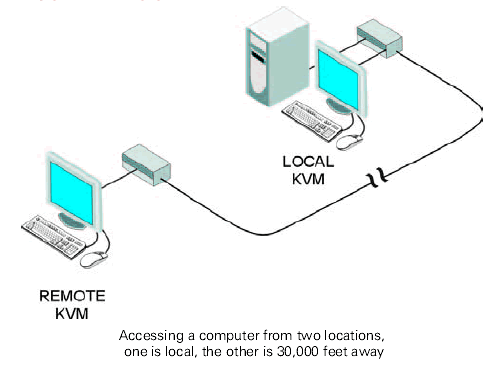

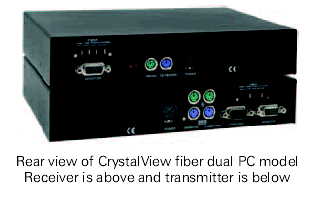

• PC dual access (has second KVM station)
• Sun single access
• USB single access

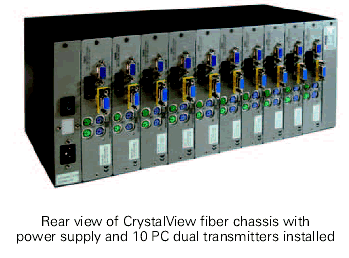

• Chassis version for high density mounting
• Uses only two fibers (dual fiber cable)
• Immune to lightning, power surge, and electromagnetic and radio interference
• Provides security by reducing possibility of tapping into fiber
• Status LEDs show link status and error conditions
• Distances vs. fiber type:
• 9/125µ singlemode fiber - 30,000 feet (10km)
• 50/125µ multimode fiber - 1,200 feet (400m)
• 62.5/125µ multimode fiber - 600 feet (200m)
• Compatible with Windows, Solaris, Unix, Linux, and other operating systems
• Compatible with all Rose KVM products
• 1U rack mount - 19", 23" or 24"
• Flash firmware can be upgraded by user

Rose CrystalView fiber KVM extender Specifications:

Dimensions	8.8" W x 6.3" D x 1.75" H (1U)
	22.4 cm. W x 16.0 cm. D x 4.45 cm. H
Weight	6.6 lbs / 3.0 kg complete package, 3.3 lbs / 1.5 kg each unit
Resolution	640 x 480 @ 60, 70, 75, 85Hz
	800 x 600 @ 60, 70, 75, 85Hz
	1024 x 768 @ 60, 70, 75, 85Hz
	1280 x 1024 @ 60, 70, 75Hz
Connectors	Video: VGA in - HD15 male, VGA out - HD15 female
	PS/2 keyboard: MiniDin-6F
	PS/2 mouse: MiniDin-6F
	Sun keyboard/mouse: MiniDin-8F
	USB: Transmitter - type B, Receiver - up to four type A devices
Fiber cables	Multimode fiber 50/125µ or 62.5/125µ with SC connectors
	Singlemode fiber 9/125µ with SC connectors
Power Supply	90-240 V AC, 47-630 Hz, .5A, External
Power dissipation	6 watts, does not include peripherals
Rack mount options	19", 23" and 24"
Chassis	Electro galvanized steel
Environmental	0°-55° C, 0%-80% non-condensing relative humidity
Laser wavelength	Multimode: 850 nm, Singlemode: 1300 nm
Laser Power	Multimode: IEC <400µW, FDA <70µW
	Singlemode: IEC <2000µW, FDA <180µW
Laser safety	The Multimode transceivers are Class 1 laser products and comply with IEC 825-1 and FDA 21 CFR 1040 and 1040.1.1 The singlemode transceivers are Class 1 laser products and comply with IEC 60825-1 and FDA 21 CFR 1040. and 1040.1.1.

Rose CrystalView Pro fiber KVM extender Part Numbers

Standalone units

CRK-1DFM/PC PC Multimode Single

CRK-1DFS/PC PC Singlemode Single

CRK-2DFM/PC PC Multimode Dual

CRK-2DFS/PC PC Singlemode Dual

CRK-1DFM/SUN Sun Multimode Single

CRK-1DFS/SUN Sun Singlemode Single

CRK-1DFM/USB USB Multimode Single

CRK-1DFS/USB USB Singlemode Single

RM-UMnn Rack mount kit, nn= 19", 23", or 24"

Chassis version

Contact 42U Sales Engineers for further details about this version
