Simplex AirBlock Data Center Curtains and Partitions
Simplex Data Center Curtains & Plexiglas Containment Walls
Data centers come in many different configurations, all designed to facilitate cooling. Simplex AirBlock Data Center Curtains have been designed to accommodate these configurations, providing optimum sealing to prevent the escape of cold air, and ensure your data center all the benefits of your cooling efforts.
Curtains - These data center curtains are made from virgin materials to provide extra clear transparency and protection against yellowing and cracking.
Easy Mounting and Assembly - various mounting systems available including this t-bar ceiling clip that attaches easily and quickly to your existing ceiling grid with no need for drilling. Other options include bi-folding curtains and standard swing and sliding door systems.
These Data Center Curtains feature a selection of innovative mounting options that allow you to customize your solution quickly and efficiently as your needs change.
Suspended T-Bar Mounting for mounting onto existing 1", 1-1/2" or 2" suspended t-bar ceilings
Bi-Folding Curtain Mounting available in anodized aluminum, galvanized or stainless steel
Flat wall Mounting for mounting on frames or vertical surfaces
In-jamb Ceiling Mounting for mounting under headers, frames or on horizontal surfaces

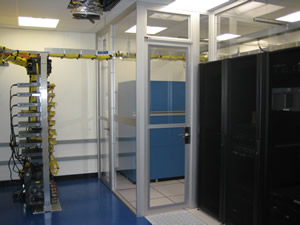

Data Center Hard Wall Enclosures: Data Center Hardwall enclosures offer another energy-saving solution for separating hot and cold air aisles. Hard walls are an excellent solution for high traffic data centers or those frequently visited by VIP personnel.
Data Center Curtains Configuration Illustrations:

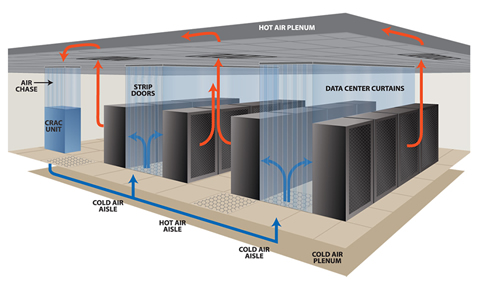

Plenum-to-Plenum Cooling Configuration

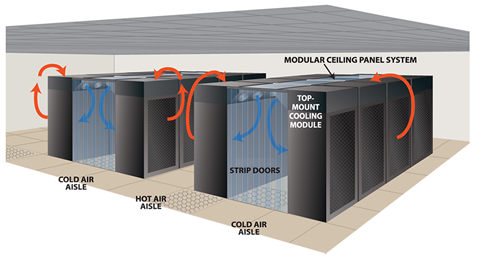

Top-Mount Cooling Configuration

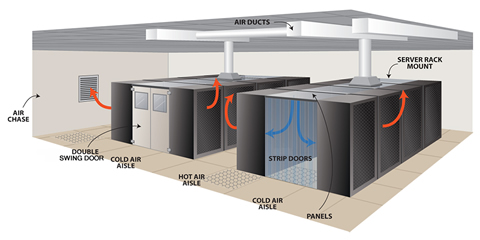

Deck-to-Deck Ducted Air Configuration
Simplex AirBlock Curtains offer many benefits:
- Save energy on air conditioning by as much as 15% and up to 67% on fans. Protect your mission critical operations.
- Maximize airflow dynamics and increase the effectiveness of your hot aisle/cold aisle isolation.
- Specially formulated vinyl and non-vinyl materials include Polysim 509, a low outgassing, static-dissipative polyurethane that meets ASTM and NFPA fire retardancy requirements.
- Hardware is designed so that curtains fall away in the case of a fire, allowing sprinklers full operating range.
- Check with your regional electrical utility about energy-saving rebates that can help offset the cost of your system.
AirBlock Data Center Curtain Applications:
Enclosure of CRAC unit
Data center strip doors, anti-static strip panels
Hot aisle containment with strip door access
Curtain enclosure with strip door entry
Hot aisle containment with electrical raceway pass-through
Are Simplex Data Center Curtains the best containment solution for your cooling needs?
Our engineers can help you select the best containment system to maximize your cooling capacity.
Click here or Call 1-800-638-2638 for a free initial project evaluation.
