Avocent AMX5010
The Avocent AMX5010 16-User by 64-Port analog KVM switch provides end-to-end Cat5 based multi-user access and control to any computer in your network. The AMX Cat5 based KVM switch architecture as a whole includes the AMX5010 matrix KVM switch, the AMIQ Cat5 Server Interface Module, the AMX5110 and/or AMX5120 user stations and the bundled AMWorks Java-based administrative software management tool. The UTP enabled connectivity and analog KVM switching technology will allow multi-user access and full KVM connectivity to any variety of computer platforms in your data center - PS2, USB, SUN or Serial. The scalable approach with implementing the Avocent AMX Cat5 solution permits users to add computers or devices with ease as data centers evolve with time. Avocent's next generation AMX5010 is a 16x64 analog matrix switching solution that provides unmatched advancements in increased access and efficient scalability. The powerful Avocent AMX5010 solution increases the number of users with simultaneous access and provides access to all major server platforms and serial devices. Avocent's advanced AMWorks software is also included with the Avocent AMX5010 switch for central administration. Click here to view information on AMX Broadcast solutions.
Avocent AMX5010, AMX5000, AMX5120, AMIQ-PS2,
AMWorks screen shot
Avocent AMX5010 Features and Benefits - Avocent AMX5010 provides access to all major server platforms and serial devices
- Avocent AMX5010 is ideal for growing IT infrastructures with multi-rack, multi-device, multi-platform deployments
- Avocent AMX5010 provides full non-blocked access to servers
- Avocent AMX5010 provides ease of use with front panel LED indicators
- Avocent AMX5010's advanced JAVA-based AMWorks included with the AMX5010 switch
Avocent AMX5010 Specifications | Mechanical |  | Height | | 3.4 in. (8-6 cm) | Width | | 17.2 in. (43.2 cm) | Depth | | 11.1 in. (28.1 cm) | Weight | | 16 lbs. (7.27 kg) | | | | | | Environmental | Operating Temp | | 32 F (0C) to 122F (50C) | Storage Temp | | -4F (-20C) to 122F (50C) | | | | | | Power | Operating Voltage | | 100 - 240 VAC, 50 - 60 Hz | Power Frequency | | | | Input | | | | | | | | Supported Hardware | Computers | | AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM
PC/AT, PS/2 and 100% compatibles | Monitors | | VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution | Peripherals | | AM5100 User Station: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2
only), Sun Type 5 and Type 6 | | | | | | Standards | Approved Agency | | |

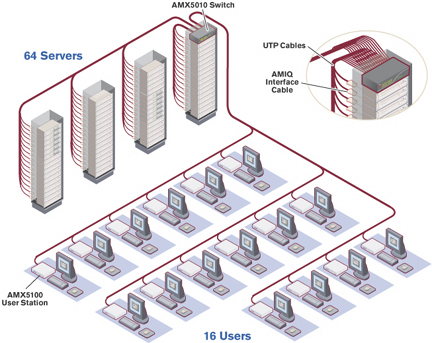

Avocent AMX5010 Diagram
| | |
| Avocent AMX5111 PS/2 and USB desktop user station w/ AMIQ-PS2 module for a local PC connection | AMX5111-001 | | Avocent AMX5121 PS/2 and USB desktop user station w/ automatic skew compensation & AMIQ-PS2 module for a local PC connection | AMX5121-001 | | Avocent AMX5130 (user station with local access and audio and serial support) | AMX5130-AM | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
|
| Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse | AMIQ-PS2 | | Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse - 10-pack | AMIQ-PS210 | | Compact server interface module for VGA Video PS/2 keyboard PS/2 mouse - 32-pack | AMIQ-PS232 | | Compact server interface module for VT100 serial-based devices (requires UPD-AM power supply) | AMIQ-SRL | | Compact server interface module for VGA, USB keyboard / mouse | AMIQ-USB | | Compact server interface module for VGA or 13W3, Sun keyboard / mouse | AMIQ-VSN | | Dual UTP PS/2 interface module with audio and serial | AMIQDM-PS2 | | Dual UTP USB interface module with audio and serial | AMIQDM-USB | | Dual UTP Sun VGA interface module with audio and serial | AMIQDM-VSN | | Power Supply | UPD-AM | Corporate & Government Discount Pricing is available at 1-800-638-2638 |
| |
Built on Avocent's field-proven matrix switching design, the AMX5010 is a 16x64 switch that provides a powerful KVM solution with advanced manageability. The Avocent AMX5010 highly scalable architecture easily accommodates additional servers and users, which makes the Avocent AMX5010 particularly effective in evolving server installations. Avocent's AMWorks software is included with the Avocent AMX5010 switch for central administration. | |
The Avocent AMX5100 user station connects to the user's multi-platform peripherals and sends the KVM signals over an industry standard CAT 5 cable to Avocent's Avocent AMX5000 matrix switch. Avocent AMX5100's design automatically compensates for varying cable types and lengths and adjusts for signal losses each time a switch is made to the server.
| | | | |
The AMWorks Java-based system administration tool supports customized user profiles and multi-level security. AMWorks allows system administrators to build a user database for multi-level access to servers with password protection for each user. The database is centrally stored and can be downloaded to the Avocent AMX5010 matrix switch via the network connection port. | |
The AMIQ enhanced CAT 5 cable interface is the new choice for flexibility and performance in robust IT environments. The CAT 5 design and video technology eliminate bulky cabling connections and delivers real-time, high bandwidth video for KVM switching up to 1,000 feet away from the server. The AMIQ's built-in memory eases configuration by assigning and retaining unique server identification codes for each attached server. |
